Molytech Wear Strip & Side Guard are used for guiding, supporting and lateral limitation of plastic flat chain, modular conveyor belt and light-duty flat belt, reducing friction and noise, protecting products and chains/belts, and improving line stability and hygiene levels. Suitable for dry and wet areas as well as CIP cleaning environments in food, beverage, baking, fruit and vegetable, canning and pharmaceutical industries.

Product Types

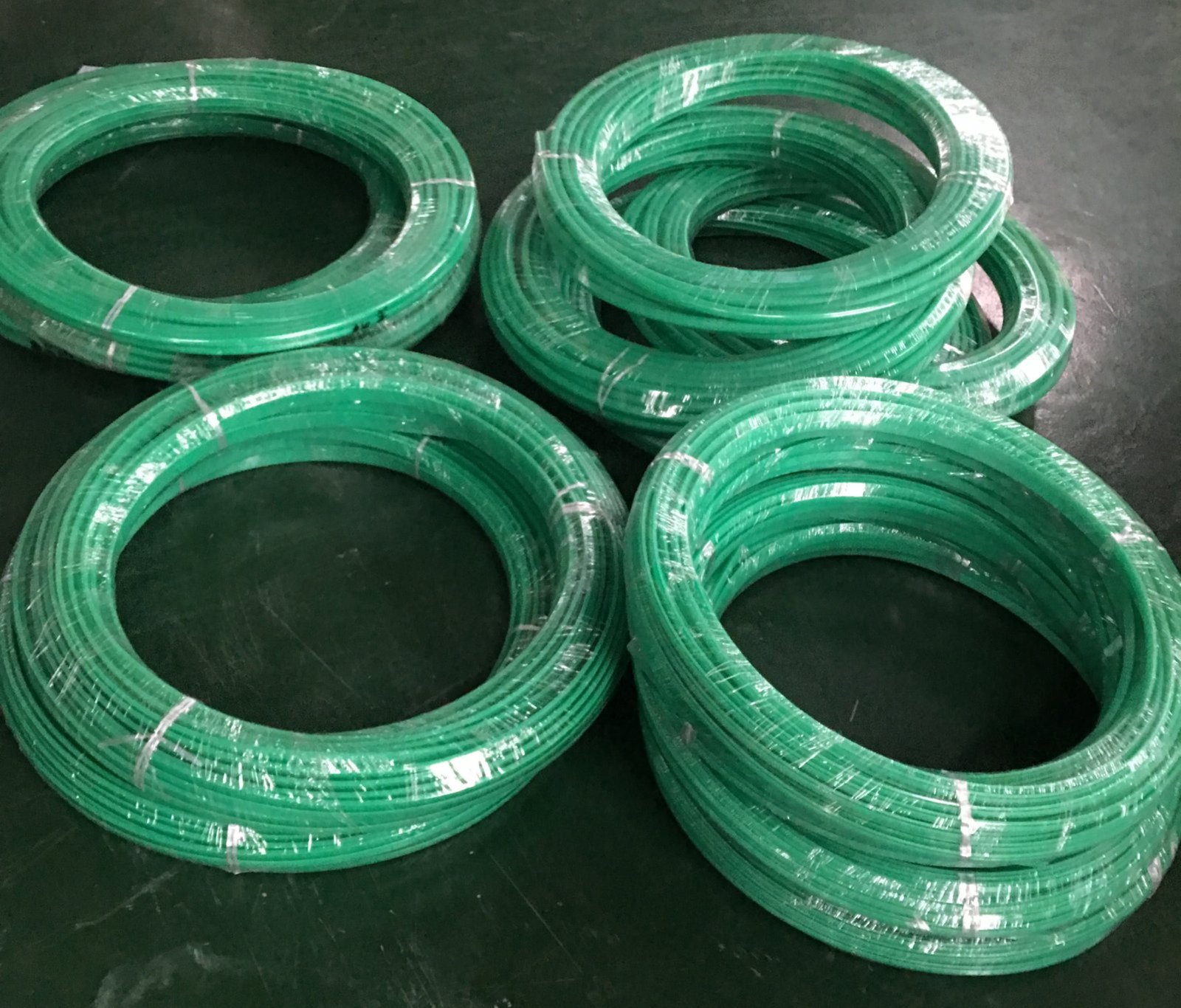

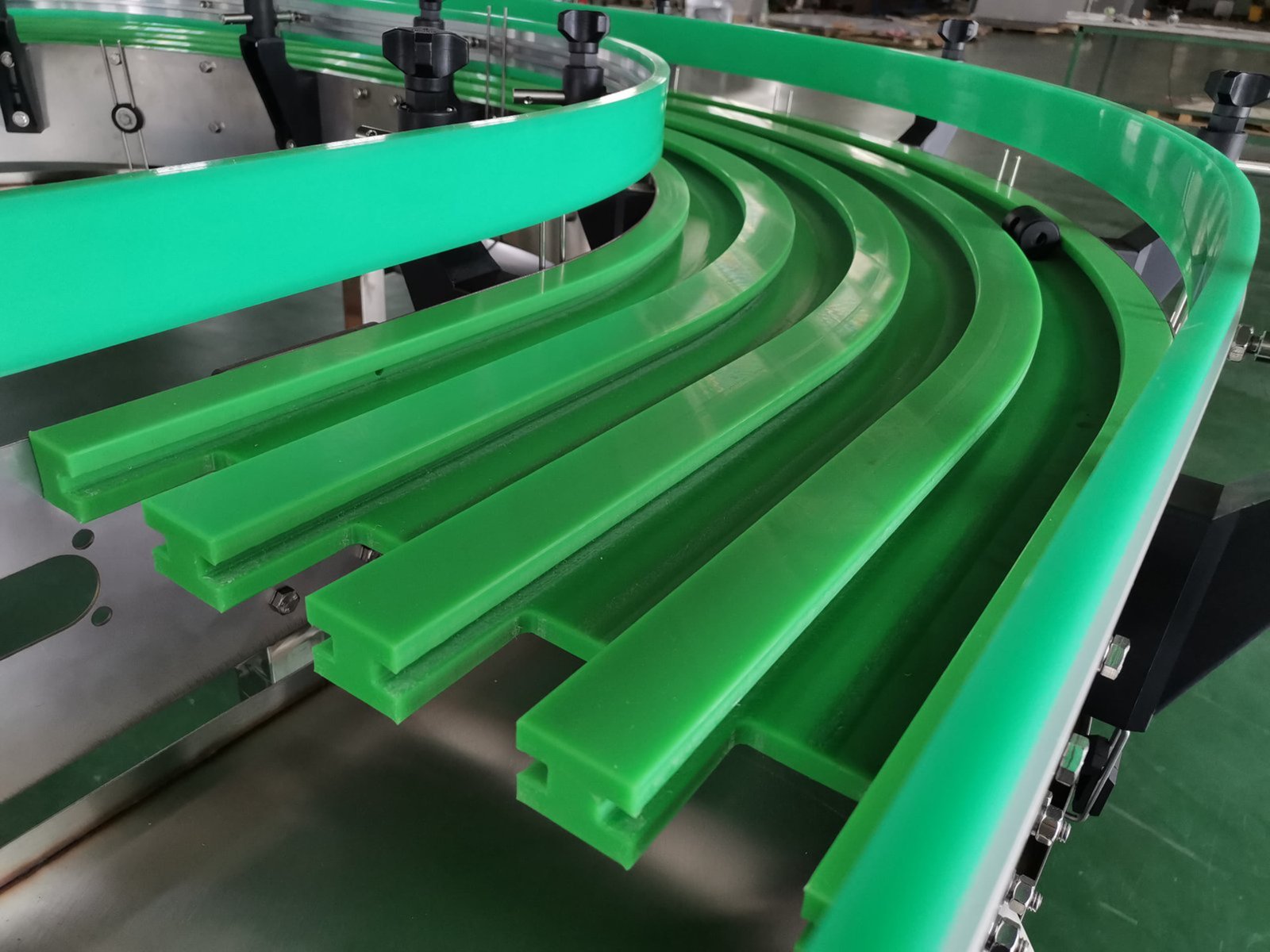

• Top guide strip/wear strip: Low friction support for the chain/belt running surface, reducing back pressure and wear

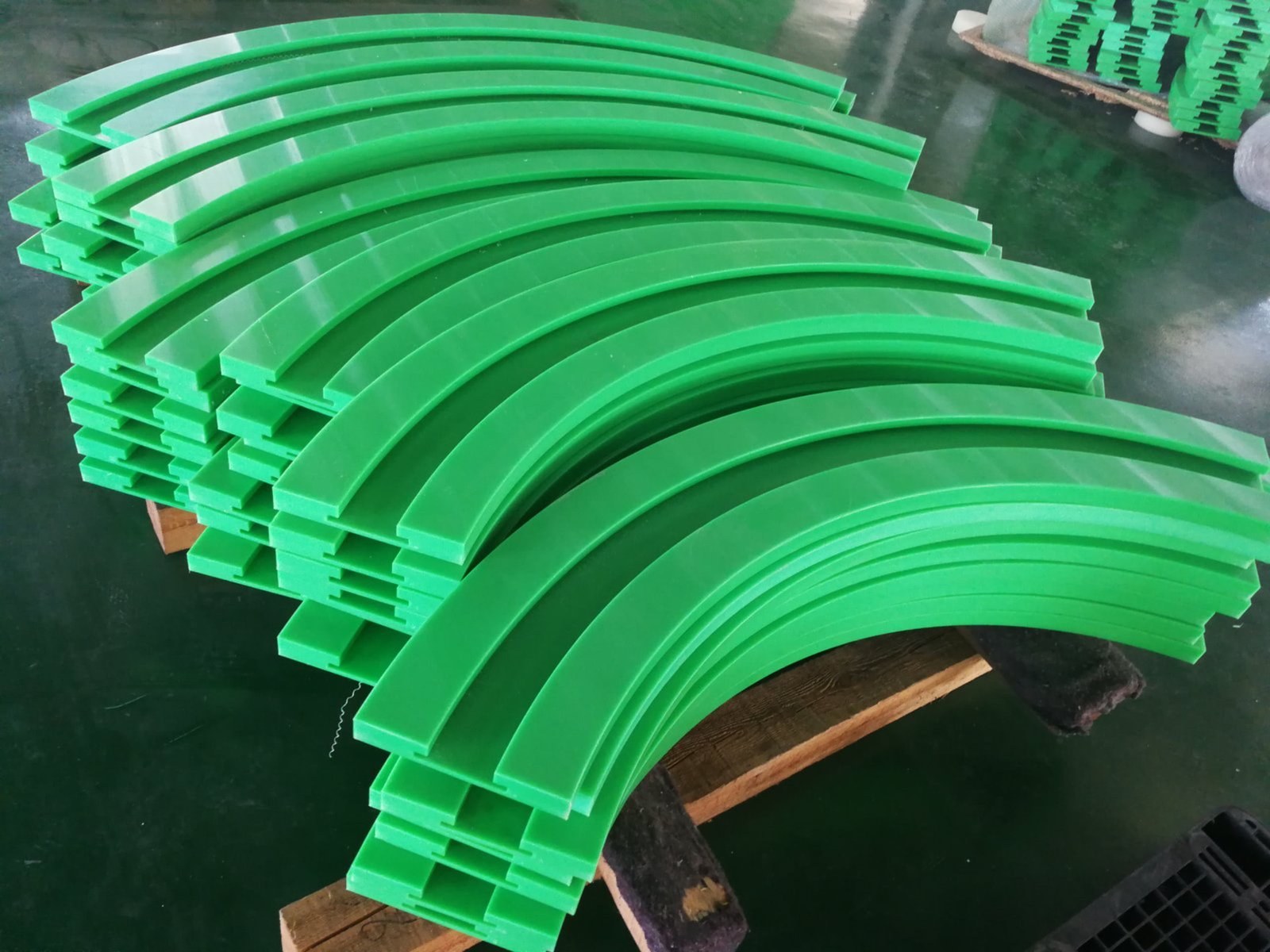

• Return guide strip/wear strip: Noise reduction and anti-wear for the return section

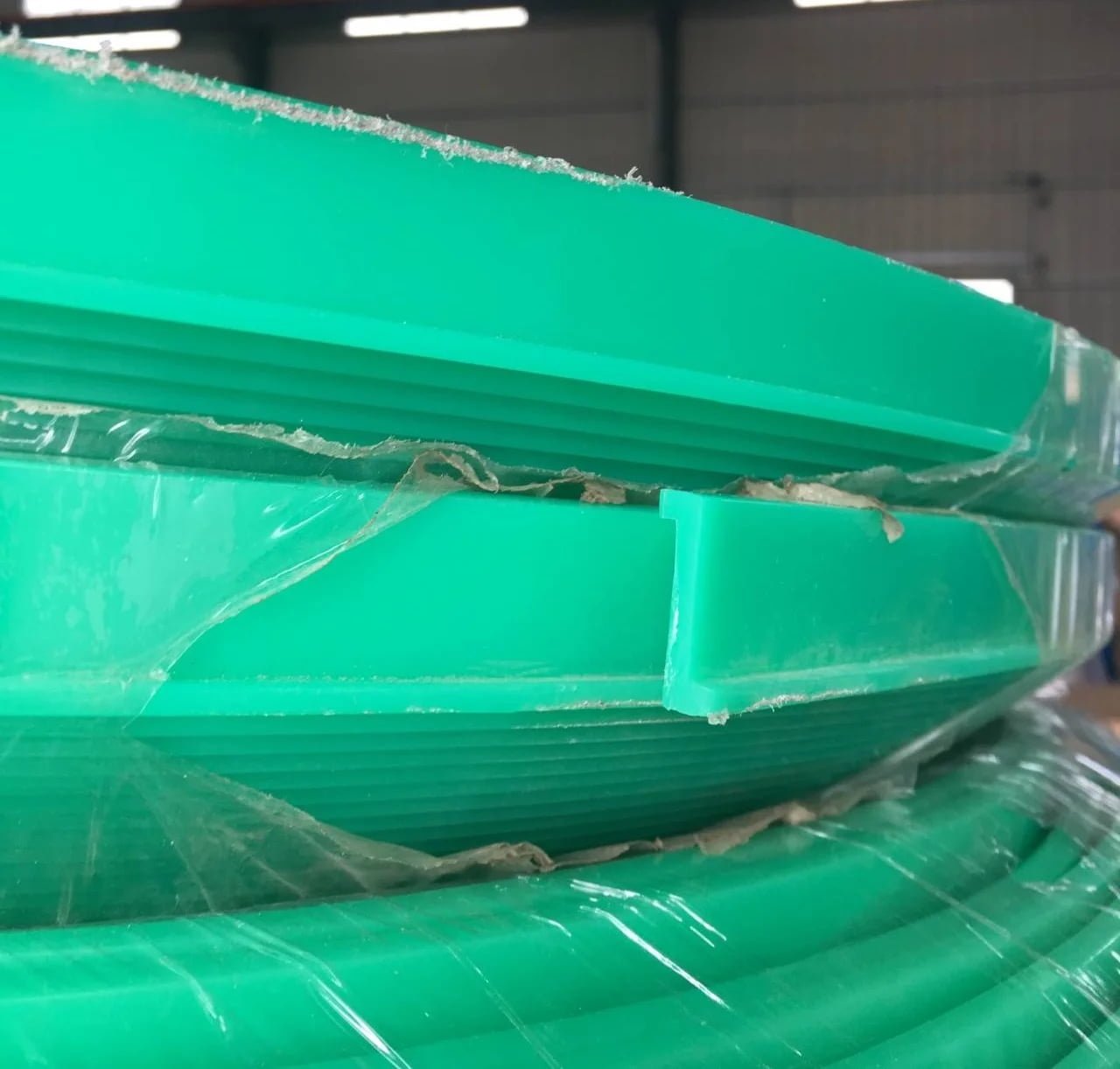

• Guide groove type: C/U/T type guide rail, chain guide strip, nose rod transition guide strip (small diameter transition)

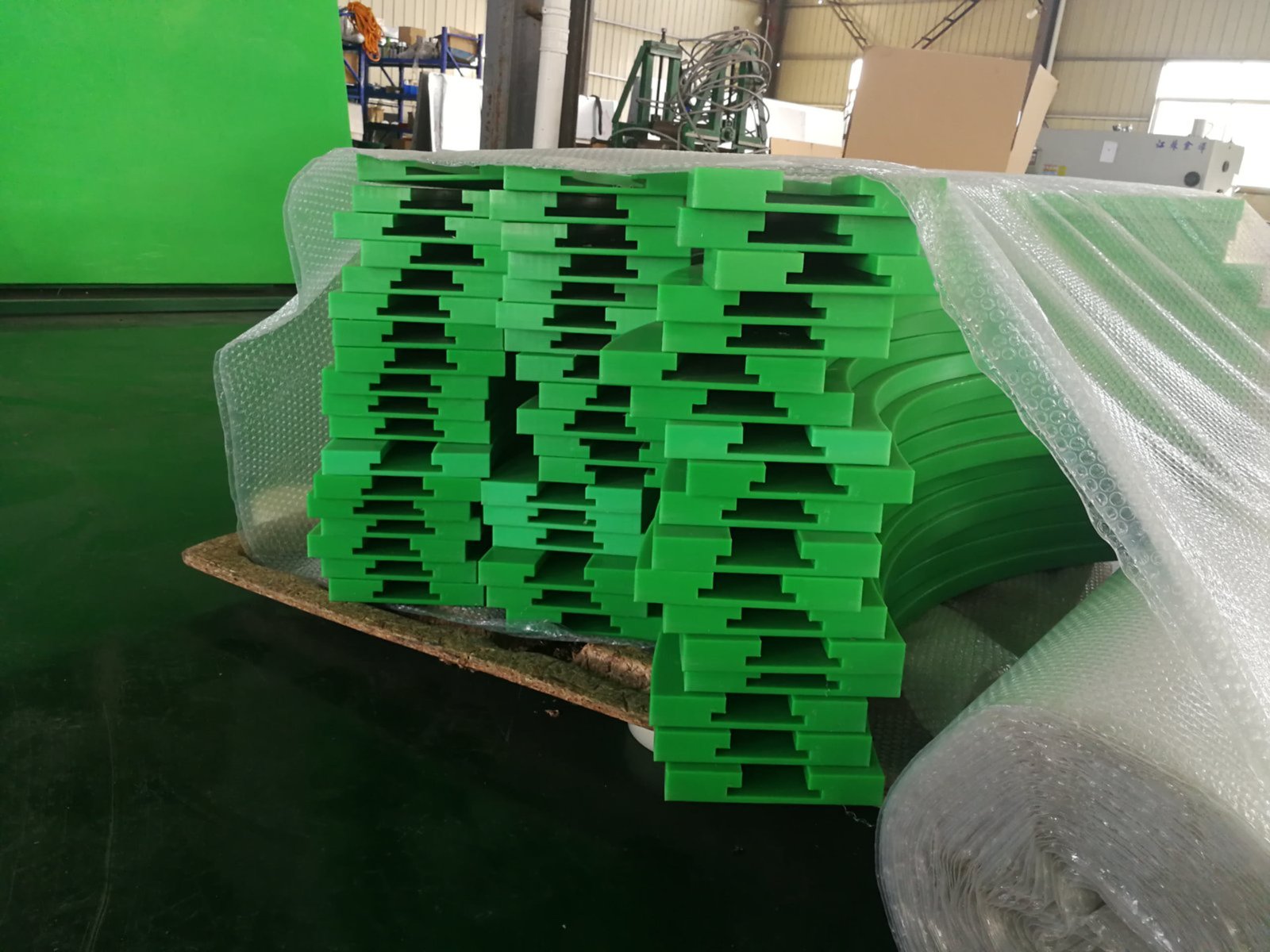

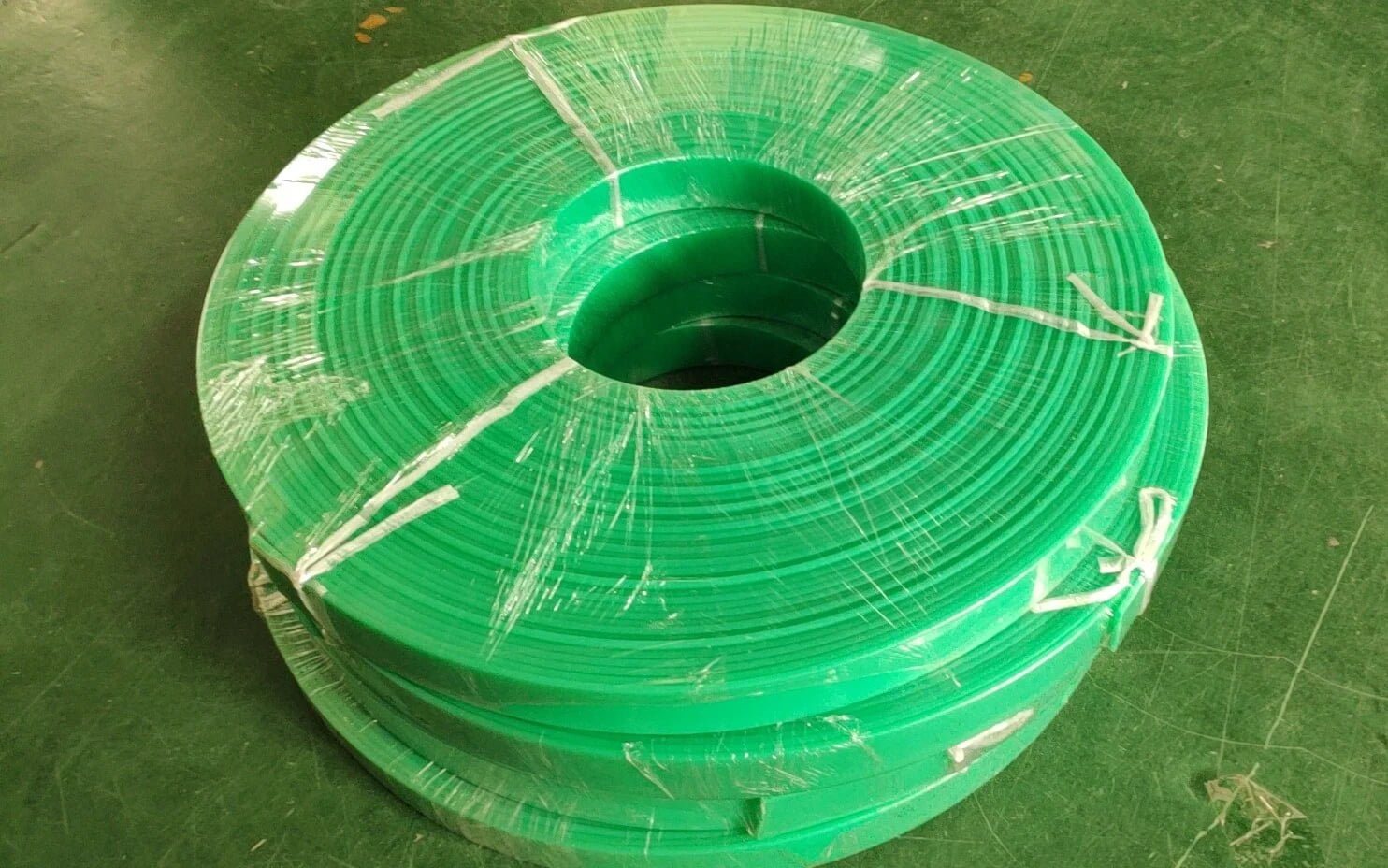

• Side guard/side edge: Single or double side limitation, adjustable spacing, suitable for diverter and converger sections as well as accumulation sections
• Back panel and quick installation: Stainless steel/aluminum back panel, pre-drilled holes, quick clamp/quick disassembly components

Materials and Options

• Engineering plastics: UHMW-PE/UPE (low friction, wear-resistant, chemical-resistant), POM/PA (high rigidity, dimensional stability), PP/PE (lightweight, corrosion-resistant)
• Metal back panel: Stainless steel 304/316, aluminum alloy (anodized)
• Functional formulations: High/low friction surface, anti-static/conductive static, metal/radiation detectable, flame retardant, blue food visualization
• Dimension and machining: Standard 2-6 m strip material, supporting custom cutting according to drawings, pre-drilled holes, groove type and marking customization

Compatibility and Specifications (Examples)

• Flat chain: Guiding for series such as 820/821 straight, 880TAB/882TAB side bend
• Modular conveyor belt: Guiding for 8/12.7/25.4/50.8 mm pitch, nose rod transition
• Chain/belt width: Matching guide rail for 3.25", 4.5", 6", 7.5", 10", 12" etc.
• Providing support spacing and installation solution suggestions to ensure service life and noise control

Key Advantages

• Low friction and low noise: Reduce energy consumption and wear, extend chain/belt and guide rail service life
• Hygienic and easy to clean: Rounded corners and drainage design, CIP-friendly, reduce residue
• Stable guidance: Stable side guard limitation, quick adjustment, smoother accumulation
• Corrosion-resistant and durable: Materials optimized for wet areas and chemical cleaning, long-term reliability
• Easy installation: Quick installation back panel and clamps, convenient on-site maintenance and replacement

Typical Applications

• Diverter and converger sections and accumulation buffers for high-speed bottle/can lines
• Smooth guidance for transfer between packaging before and after, and for small nose rod transitions
• Guiding and return support for perforated conveyor belts in washing, cooling and drying sections
• Anti-slip guidance and lateral protection for incline and decline sections

Selection Points (Facilitating rapid matching)

• Shape, size and weight of conveyed items, whether they are prone to scratching
• Speed and accumulation length, dry/wet area, temperature and cleaning chemicals
• Chain/belt model and width, turning radius and transition diameter
• Installation interface: Profiles/back panel/hole spacing, bracket height, whether quick disassembly is required
• Functional requirements: High/low friction, ESD, detectable, color and marking
• Replacement information: In-use brand and key dimensions (if any)

Installation and Maintenance Recommendations

• Keep the guide rail parallel and centered, reserve side clearance and thermal expansion allowance
• Reasonably set the return support spacing, avoiding abnormal wear and noise
• Avoid direct metal friction; use matching chain pressing/limiting components
• Regularly clean according to CIP procedures, and periodically check wear and fastening conditions

Get Solutions and Quotations

Please send the conveyed item, speed and layout, chain/belt specifications, installation interface and environmental conditions to our engineering team. We will provide product selection recommendations, sample solutions and delivery schedule within 24-48 hours.
